| Laser Beam | 4V1H1D GREEN | ||
| Laser wave length | 532nm laser diode,10mw | ||
| Light Source | CLass ll | ||
| Horizontal and vertical | 10m±1mm | ||
| Next point accuracy | 10m±1mm | ||
| Level accuracy | ±1mm/5m | ||
| Right Angle accuracy | 90° ±0.025° (±1mm/3m) | ||
| Spot accuracy | ±1mm/1m | ||
| Orthogonal accuracy | ±1mm/3m | ||
| Width of Line | 2mm/5m | ||
| Automatic Compensatory range | ±3° | ||
| Laser emission Angle | 110° | ||
| Working range | Indoor 50m;Outdoor 30m | ||

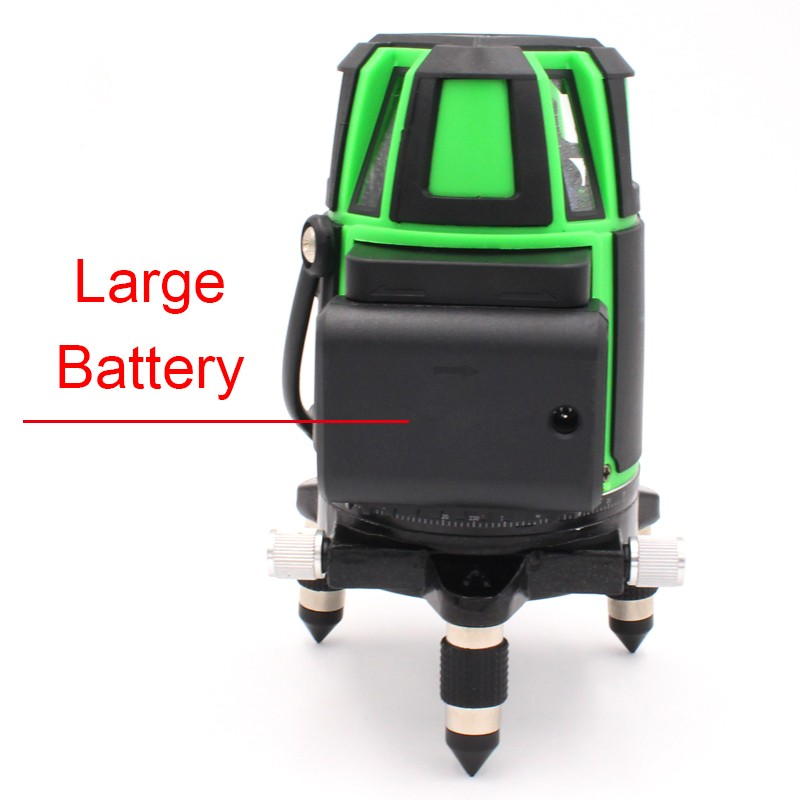

| Power supply | Lithium battery | ||
| Continuous operating time | 24 hours | ||
| Fixed Screw interface | 5/8*x11,ISO standrd | ||
| Temperature Range | -10℃ -50℃ | ||
| N.W./G.W. | 0.9Kg(include battery)/1.8Kg(include carton) | ||
| Accessories | Suitcase, goggle, charger, battery, Strap | ||
| Packing Details | 12pcs/ctn/G.W.: 23Kg 48x45x52cm/ctn | ||
| 21 x 15.5 x 24.5 cm/pcs | |||
| Laser Beam | 4V1H1D GREEN | ||
| Laser wave length | 532nm laser diode,10mw | ||
| Light Source | CLass ll | ||
| Horizontal and vertical | 10m±1mm | ||
| Next point accuracy | 10m±1mm | ||
| Level accuracy | ±1mm/5m | ||
| Right Angle accuracy | 90° ±0.025° (±1mm/3m) | ||
| Spot accuracy | ±1mm/1m | ||
| Orthogonal accuracy | ±1mm/3m | ||
| Width of Line | 2mm/5m | ||
| Automatic Compensatory range | ±3° | ||
| Laser emission Angle | 110° | ||
| Working range | Indoor 50m;Outdoor 30m | ||
| Power supply | Lithium battery | ||
| Continuous operating time | 24 hours | ||
| Fixed Screw interface | 5/8*x11,ISO standrd | ||
| Temperature Range | -10℃ -50℃ | ||
| N.W./G.W. | 0.9Kg(include battery)/1.8Kg(include carton) | ||
| Accessories | Suitcase, goggle, charger, battery, Strap | ||
| Packing Details | 12pcs/ctn/G.W.: 23Kg 48x45x52cm/ctn | ||
| 21 x 15.5 x 24.5 cm/pcs | |||
