While traditional application methods rely on manual transfer or compressed air, high-production coating requires a fundamental shift in fluid dynamics. Misunderstanding the internal mechanics of high-pressure systems frequently leads to mismatched equipment purchases, resulting in blown motors, premature pump failure, or unacceptable finish quality on commercial jobs. Deconstructing the engineering behind Airless Paint Sprayers provides a necessary framework for evaluating pump architectures and selecting the exact specifications required for your operational scope. You need to know exactly how fluid moves from the bucket to the wall to keep your crew spraying instead of troubleshooting.
Hydraulic Atomization: Airless systems operate by forcing fluid at extreme pressures (typically 1,000 to 3,300+ PSI) through a precision orifice, shattering the coating into a spray pattern without the use of compressed air.
Pump Architecture Dictates Lifespan: The choice between piston and diaphragm pumps directly impacts material compatibility, continuous duty cycles, and rebuild costs.
Tip Sizing is the Primary Control Variable: Flow rate (Gallons Per Minute - GPM) and fan width are governed entirely by the spray tip, making it the most critical consumable in the system.
Operational Risk Management: High-pressure operation necessitates strict adherence to safety protocols (preventing injection injuries) and rigorous maintenance schedules (flushing, filter replacement, and winterizing).
Buyers must understand how fluid is pressurized to evaluate whether a machine can handle their specific coating viscosities and production rates. Forcing unmixed fluid through a restrictive nozzle creates hydraulic atomization. This contrasts sharply with High Volume Low Pressure (HVLP) systems, which mix fluid with a stream of pressurized air. Airless technology offers massive production speed and high-viscosity capability. HVLP offers higher transfer efficiency for fine finishing but struggles with heavy materials like block fillers or elastomerics.
Fluid pressure, measured in Pounds per Square Inch (PSI), provides the force required to atomize the material and overcome its viscosity. Flow rate, measured in Gallons Per Minute (GPM), defines the volume capacity of the pump. The baseline rule for equipment selection is straightforward: the pump's maximum GPM must exceed the flow rate demanded by the largest tip size you intend to use. If your pump maxes out at 0.50 GPM and you attach a tip that demands 0.60 GPM, the pressure will drop, the spray pattern will collapse, and you will leave heavy lines on the wall.
Understanding the relationship between pressure and fluid dynamics is critical on the job site. When you pull the trigger, the sudden release of fluid causes a momentary pressure drop. The pump must instantly react to rebuild and maintain that pressure. Machines with undersized motors or worn packings will struggle to keep up, leading to inconsistent fan patterns. We always recommend sizing your pump at least 20% above your maximum anticipated GPM requirement to provide a buffer for motor fatigue and tip wear.
Let us look at how different materials demand different mechanical capabilities. Spraying a thin stain requires minimal pressure and low GPM. Spraying a high-build dry-fall coating requires a massive pump capable of sustaining high pressure while moving a large volume of heavy fluid. You cannot cheat physics. If you try to push heavy material through a small pump, you will burn out the motor or blow the packings.

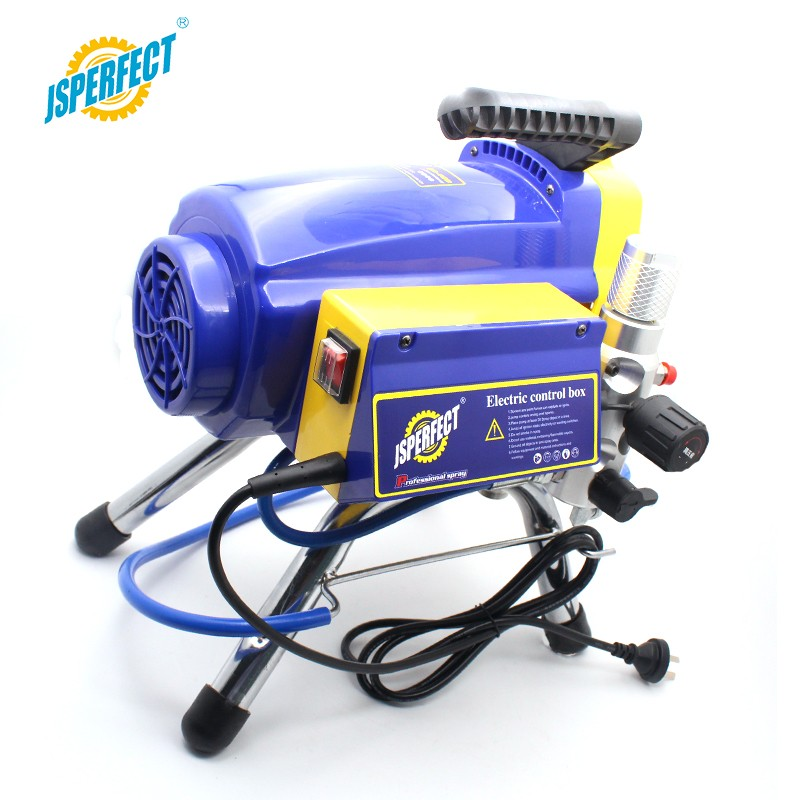

Breaking down the hardware allows operators to evaluate build quality and scalability. The motor drives the entire system. Brushed electric motors are common in entry-level units, but brushless motors deliver superior torque and a longer lifespan for professional use. Brushless motors also run cooler and do not create sparks, which is a critical safety factor when spraying solvent-based coatings in enclosed spaces. Gas-powered units provide necessary mobility and high output for off-grid industrial sites where electrical power is unavailable or unreliable.

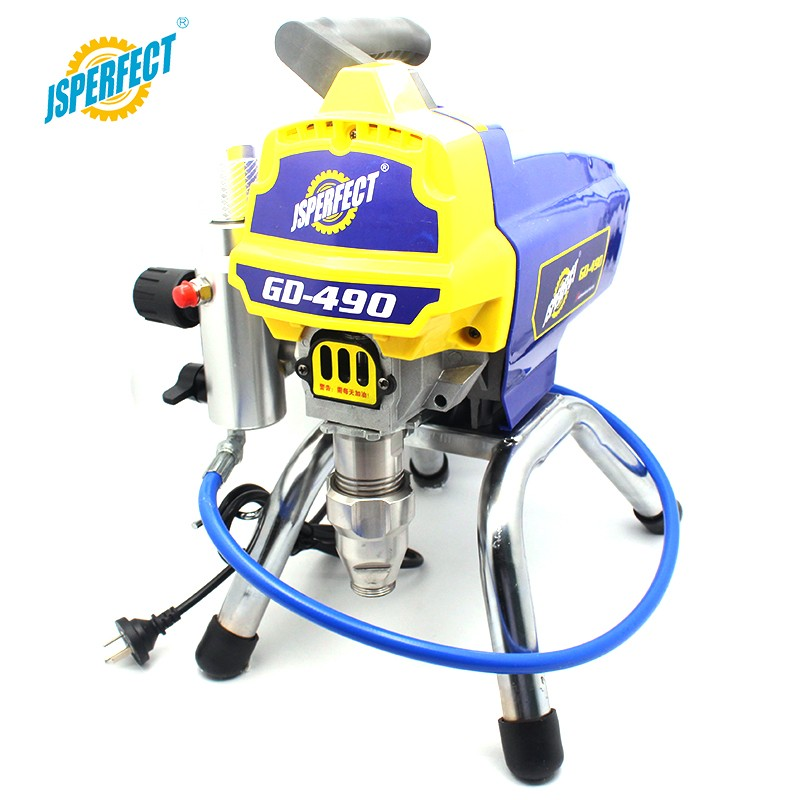

The pump assembly is the heart of the machine. Piston pumps utilize an upstroke and downstroke mechanism with check valves (balls and seats) to draw and push fluid. They are highly suitable for heavy, high-viscosity coatings, though repacking the seals is an inevitable maintenance task. Diaphragm pumps use hydraulic fluid pulsation to move a flexible membrane. They offer higher tolerance for abrasive materials and lower rebuild complexity, but generally operate at a lower maximum PSI compared to piston pumps.
Here is a breakdown of how piston and diaphragm pumps compare in the field:
Feature | Piston Pump | Diaphragm Pump |
|---|---|---|
Viscosity Handling | Excellent for heavy materials (elastomerics, block filler) | Better suited for thin to medium materials (stains, latex) |
Abrasive Tolerance | Lower (packings wear out faster) | Higher (no sliding seals against the fluid) |
Maintenance | Requires regular repacking of seals | Requires occasional diaphragm replacement |
Pressure Consistency | Slight pulsation on the stroke change | Very consistent pressure delivery |
The intake and filtration system protects internal components and prevents tip clogs. Fluid travels from the rock catcher (intake screen) through the manifold filter and finally the gun filter. Staged filtration ensures that debris is caught before it reaches the precision orifice of the spray tip. If you skip filtering your paint or remove the manifold filter to increase flow, you will spend half your day clearing tip clogs and risk scoring the internal cylinder of your pump.
We see many operators ignore the gun filter. The gun filter is your last line of defense. Depending on the material, you need to select the correct mesh size. A 60-mesh filter works well for standard latex, while a 100-mesh filter is necessary for fine finish work with enamels or stains. Using a coarse filter with a fine tip guarantees clogs.
Consumable selection dictates project outcomes and finish quality. Standard spray tips use a 3-digit numbering system. For example, a 515 tip indicates a 10-inch fan width (5 x 2) and a 0.015-inch orifice. The orifice size must align with the pump's GPM rating to prevent pressure drops and uneven spray patterns.
Paint exerts a highly abrasive effect on tungsten carbide tips. Wear rates directly impact replacement economics. Symptoms of a blown tip include fingering (heavy edges in the spray pattern) and wasted material. Spraying with worn consumables increases material costs and degrades the final finish. A tip that has worn from 0.015 to 0.017 will output significantly more paint, leading to runs, sags, and massive material waste if the operator does not adjust their travel speed.
To maximize tip life, you must understand the factors that cause wear. Pushing material at maximum pressure accelerates wear exponentially. Always spray at the lowest pressure that still provides a fully atomized fan pattern. Additionally, abrasive materials like block fillers or heavily pigmented primers will destroy a tip in a fraction of the time it takes standard latex to cause wear.
Start with the pressure turned down low.
Trigger the gun against a piece of test cardboard.
Gradually increase the pressure until the heavy edges (tails) disappear.
Stop increasing pressure once the pattern is even. Any additional pressure only creates overspray and accelerates tip wear.
Reversible tips are the industry standard for a reason. When a clog occurs, you simply rotate the tip 180 degrees, pull the trigger to blow out the obstruction, rotate it back, and continue spraying. This eliminates the need to disassemble the gun guard on the scaffold.
Assessing how machine mechanics handle different chemical compositions is vital for success. Handling high-viscosity coatings like elastomerics, block fillers, and dry-fall requires high GPM ratings, large orifice tips, and direct-immersion pumps. Direct-immersion pumps place the intake valve at the very bottom of the fluid section, allowing the pump to physically pull heavy material into the cylinder rather than relying on suction through a long intake hose.
A common misconception is that all latex paint requires thinning. While entry-level consumer units may require thinning to achieve atomization, professional-grade airless paint sprayers are engineered to spray unthinned architectural latex directly from the bucket. Over-thinning causes runs, sags, compromised mil thickness, and altered sheen. If your professional rig cannot atomize standard latex, you either have a worn tip, a clogged filter, or failing pump packings.
If thinning is required for lower-horsepower units, follow strict technical guidelines to avoid ruining the coating:
Viscosity Testing: Measure run-out times using a standard viscosity cup (e.g., Zahn or Ford cup) to establish a baseline.
Volumetric Ratios: Restrict the dilution limit strictly to 5% to 10% clean, room-temperature water by volume to avoid breaking down the paint's binder system.
Straining and Agitation: Use mechanical drill mixers and run the thinned coating through a fine-mesh strainer bag to eliminate micro-clumps before it reaches the intake.
Temperature plays a massive role in material viscosity. Paint left in a cold van overnight will be significantly thicker than paint stored at room temperature. Before you decide to thin a coating, try warming it up. Bringing the paint up to 75 degrees Fahrenheit will often reduce the viscosity enough to spray perfectly without adding any water or solvent.
Deploying airless systems in the field presents practical challenges. Transfer efficiency typically ranges from 50% to 70%, meaning overspray is a significant factor. Mitigation tactics include using the lowest pressure that still atomizes the coating, practicing proper trigger technique, and utilizing low-pressure (LP) tips. LP tips are engineered with internal geometry that allows them to atomize fluid at up to 50% lower pressure than standard tips, drastically reducing overspray and extending pump life.
High-pressure injection injuries pose a severe medical risk. Fluid injected directly into the bloodstream requires immediate surgical intervention. Mandatory safety hardware includes tip guards, trigger locks, and the strict use of the pressure relief valve (prime/spray valve) before maintenance. Never put your hand in front of the spray tip, even if you are wearing gloves. The fluid exits the orifice at speeds capable of cutting through heavy leather.
Maintenance overhead cannot be ignored. The post-job flushing process requires water or solvent, depending on the coating used. Pump armor or storage fluid is necessary to prevent internal corrosion and valve sticking during downtime. If you leave water in the pump over the weekend, the internal steel components will begin to rust. When you start the machine on Monday, that rust will tear the packings to shreds.
Proper flushing technique saves time and preserves the equipment. Always use the two-bucket method. Place your intake tube in a bucket of clean flush fluid (water or solvent) and place your return tube in an empty waste bucket. Run the machine on prime until the fluid coming out of the return tube is completely clear. Then, switch to spray mode, remove the tip and guard, and flush the hose and gun into the waste bucket until clear.
Synthesizing mechanical knowledge into a purchasing decision ensures you get the right tool for the job. Residential and light commercial projects demanding 50 gallons per week require vastly different motor sizes and pump architectures than heavy industrial specs demanding 500+ gallons per week. Buying an undersized machine for a large commercial job guarantees equipment failure and missed deadlines.
When evaluating equipment, look at the maximum tip size rating. A machine rated for a maximum 0.015 tip is strictly for trim and light residential work. A machine rated for a 0.021 tip can handle exterior latex and medium commercial jobs. For heavy industrial coatings, you need a machine rated for 0.031 or larger. Always match the machine to the heaviest material you plan to spray.
Consider the hose length requirements for your typical jobs. Pushing fluid through 100 feet of hose requires significantly more pressure than pushing it through 50 feet. If you regularly work on multi-story exteriors and need long hose runs, you must select a machine with a higher maximum PSI and a larger motor to compensate for the pressure drop over distance.
An airless paint sprayer is a precision hydraulic system that demands respect and technical understanding. Mastering the interplay between motor torque, pump displacement, and tip sizing is essential for achieving professional finishes and avoiding catastrophic equipment failure. Base your equipment selection strictly on the highest viscosity material you intend to spray, the maximum tip size required for that material, and the sustained GPM needed to support that tip without overworking the motor.
Audit your current and projected coating materials to establish baseline requirements.
Determine your required GPM to ensure adequate flow for your largest necessary tip size.
Evaluate whether a piston or diaphragm pump architecture best aligns with your maintenance capabilities.
Implement strict safety protocols regarding pressure relief and injection hazards.
A: Airless sprayers use high hydraulic pressure to force fluid through a small tip, atomizing the paint without air. HVLP systems use a high volume of compressed air to atomize the fluid at a much lower pressure, resulting in less overspray but lower production speeds.
A: Setting the pressure too high causes excessive overspray, rapid tip wear, and premature wear on the pump components. It wastes material and makes the spray pattern harder to control.
A: Repacking frequency depends on the abrasiveness of the materials sprayed and total gallons processed. Professional piston pumps typically require repacking after spraying 500 to 1,000 gallons of standard architectural coatings.
A: Yes, professional-grade airless sprayers are designed to spray unthinned latex paint directly from the container. Only lower-horsepower consumer units might require thinning to achieve proper atomization.
A: Pressure loss is commonly caused by a clogged spray tip, a dirty manifold or gun filter, worn pump packings, or a stuck check valve within the pump assembly.
